Silent 55 solar powered catamaran world debut at Cannes Yachting Festival 2018

by Sand People Communication 13 Sep 17:22 UTC 11-16 September 2018

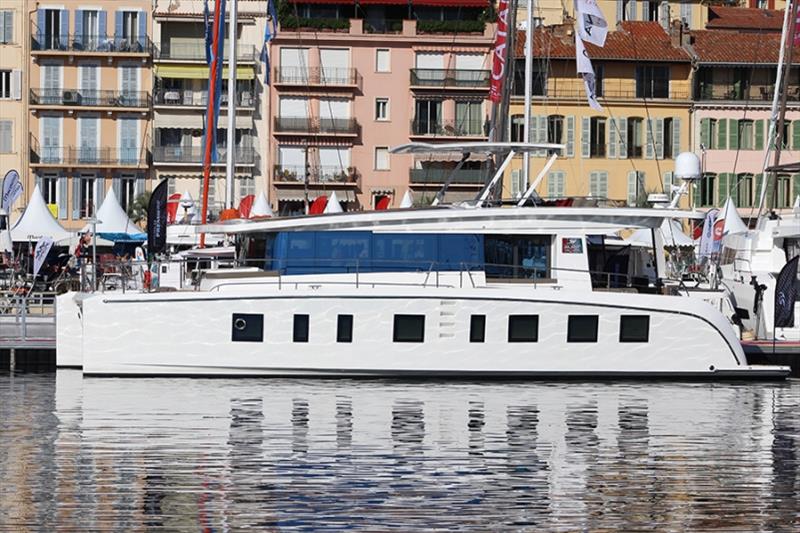

Silent 55 © Silent Yachts

Silent-Yachts is proud to introduce the Silent 55 at her world debut at the 2018 Cannes Yachting Festival (September 11-16, 2018). The Silent 55 is the first and only oceangoing solar-electric production catamaran in the world.

The yacht uses silent electric propulsion for unlimited range with no noise or fumes and minimal vibration, she is self-sufficient and virtually maintenance-free.

Configurations

The Silent 55 is available in several power configurations to suit a variety of cruising applications. All of them stick to the Silent-Yachts philosophy of relying chiefly on solar power for propulsion and onboard power needs.

The Silent 55 that was on display in Cannes is an "E-Power" version with 2 x 135 kW motors and can reach up to 14 knots. The model can be equipped as a "Cruiser" version, with a pair of 30 kW motors or a "Hybrid Power" version with2 x 220 hp diesel engines and two 14 kW electric motors. A"Sailor" version can be equipped with all the previously mentioned drivetrain configurations and is rigged with a mast and sails to provide additional propulsion in fair winds.

With 30 high-efficiency solar panels rated for approximately 10 kilowatt-peak, the Silent 55 uses maximum power point tracking (MPPT) solar charge regulators and lithium batteries, which provide capacity for all-night cruising, while a 15-kVA inverter provides power for all household appliances. The systems require hardly any maintenance and produce no fumes or noise. Because of that, the operational costs of the vessels are substantially lower compared topower yachts using more traditional propulsion systems.

Michael Köhler, Silent-Yachts CEO, said "What this represents to the yachtsman, among other features, is the ability to cruise for many hours at normal speed and throughout the entire day and evening at reduced speed. Silent-Yachts sets the standard for an entirely new dynamic in yachting: No fuel. No maintenance. Pure solar-powered luxury."

Different Layouts

The Silent 55 is available in five different layouts ranging from three to six staterooms with three or four heads. A full-width central owner's stateroom is the centerpiece inthree of the layouts, with guest staterooms located in port and starboard hulls. All staterooms offer double or twin berths, and all heads include a separate shower. Other layouts are available on request.

In all configurations, careful attention has been paid to onboard ergonomics. The staterooms, heads and saloon on the Silent 55 are all created to welcome everyperson into spaces that are adapted to human size and create a comfortable environment for living, even for extended cruising. Large portlights and flush deck hatches admit natural light.

On the Silent 55, the interior layout is centered on a shared onboard space, a huge 40 m" combination of saloon, helm and galley, with enough space for the crew to gather. The skipper will never be lonely at the lower helm as plenty of companion seating and an aft galley will keep the crew around.

Three of the layouts featureaforward owner stateroom that capitalizes on the 8.46-meter beam of the yacht for a spacious layout with a walkaround double berth. Other accommodation plans optimize the space with additional stateroomsas Silent-Yachts uses a modular construction and efficient design methods that allow additional layouts at reasonable prices.

With wide side decks for safety moving fore and aft, the Silent 55 has a spaciouscockpit sheltered by a large hardtop overhang, and enormous open foredeck space. In addition, the flying bridge promises to allow helmsman and guests to enjoy time together underway with superior lines of sight all around the boat.

The Silent 55 is equipped with the company's aeration system, which provides cool and fresh air to all accommodations, heads, and in the saloon. The air-flow in each space is individually adjustable and can be used when the weather conditions require thewindows to be closed. In addition, a reverse-cycle heat-pump system can be used to heat the interior when necessary, ensuring all-season comfort. The insulated hull ensures efficient achievementof desired onboard temperatures.

Construction

The Silent 55 is built using vacuum-bagged resin infusion to create a lightweight glass-sandwich composite construction that has sound- and temperature-insulating qualities. The hull is reinforced with carbon fiber at stress points, and uses vinylester resin to prevent osmotic blistering.

The Silent 55 hull shape was designed using extensive tank testing for optimal efficiency. The molds were then created using CNC milling for true replication of the refined, enhanced shape in the tooling. The Silent 55 has a shape both above and below the waterline that is designed to slip through the wind and waves with minimal resistance.

Designed with sealed deck sections and collision compartments for safety, the Silent 55 uses watertight bulkheads and integrated interior furniture to create a torsion-resistant hull structure.

The electrical system can allow such features as a powered aft swim platform, a 1,500-watt electric windlass, and other features yachtsmen have come to expect on world-class oceangoing cruising yachts.

Onboard Experience

Because the Silent 55 is designed to range everywhere as a true ocean-going cruising yacht that is self-sufficient, she is equipped to keep her crew happy and comfortable for virtually any voyage.

It starts with the benefits of the propulsion system. The Silent 55 can cruise efficiently for up to 100 miles a dayfor weeks. At the same time, the arrangement of the components enables the system to power all onboard systems without need of fuel to power a generator. Because of her revolutionary design, the Silent 55 travels just with the sound of the wind, and the water streaming past the hull, with no smoke, noise, or vibration of engines.

"The generator is only used to recharge the batteries in the rare case when higher speed is required for longer periods of time or if the weather is bad for several days," Köhler says.

In addition to the ergonomics of the living spaces, the Silent 55 - thanks to her advanced conveniences - offers a comfort level that sparks peace of mind. A water-maker powered by the solar-electric system,produces enoughwater to supply a full six stateroom company with reasonable rate of consumption.

On the Silent 55, all onboard appliances operate on the 220/110-volt system, to which her crew mightbe used to from their homes. The galley has refrigerator and freezer space to sustain the crewand an efficient induction cooktop, precluding the need for carrying propane.

"Under normal, average holiday conditions, the boat is self-sufficient with unlimited range without burning fuel," Köhler says. But perhaps even more importantly, the time under way is spent enjoying the sounds of wind and water, with no fumes or vibration, with no noise but the laughter of friends and family.
